Maximize Tonnage And Minimize Costs With The DRWJD-0.6 Underground LHD loader

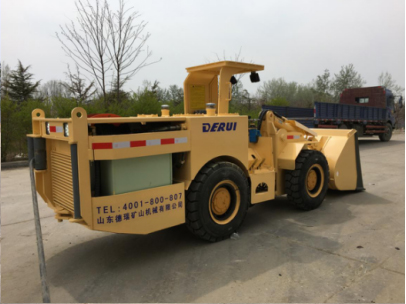

The DRWJD-0.6 is the smallest LHD in the DERUI portfolio and is designed for extremely narrow veins and narrow section. The machine is worldwide proven in hard rock mines as well as in tunneling operations. Despite the small dimensions, the DRWJ-0.6 provides an ergonomically designed cabin and a good visibility.
Its modern transmission and components result in a high reliability with simple maintenance and fully safe operation.
With a width of 1100 to 1160 m and a tramming capacity of 1.2 tons, the DRWJD-0.6 is ideal to raise your productivity without the need of increasing your gallery sections.

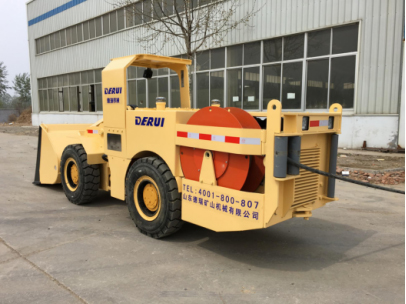

The DRWJD-0.6 fitted with a simple and robust cable reel designed for tramming and equipped with an automatic cable tension system, allows the utilization of the miniLoader with less noise and low ventil.
The DRWJ-0.6 is full of features to help mines maximize productivity and minimize extraction costs. It has been engineered to optimize machine width, length and turning radius. DRWJ-0.6 can reduce cost per ton by up to 36% due to its reduced operating width and larger capacity compared to other loaders in the same size class.
With the safety design, we have moved the operator further away from falling rocks during bucket loading. Improved visibility and powerful LED lights help reduce collision risk while ground-level daily maintenance reduces risk of slips, trips and falls. Enhanced ergonomics in the operator compartment keeps the operator more comfortable during the shift, enabling to focus on production.
MAX power train
MAX drive train
MAX speed
Ergonomic operator seat with seat belt
Simple single-pass loading improves productivity

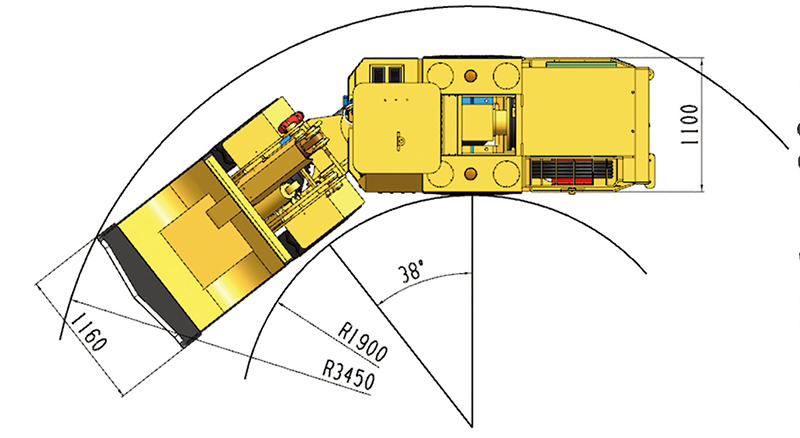

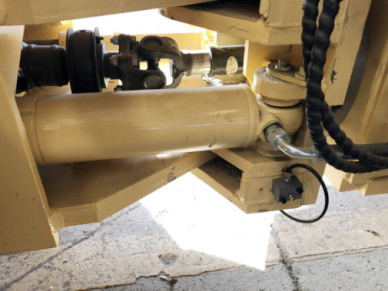

Outstanding manoeuvrability is achieved by the excellent steering angle of the robust articulation joint which allows oscillation of the frame to balance undulating roadways. This layout results in optimum weight distribution on all four wheel and the rear frame is protected against torsional force.
Small envelope size and turning radius enable easy navigation in narrow veins
Low operating weight reduces fuel consumption and extends tire life
Easy access to well-protected service points facilitates daily maintenance
All the service points are well protected but easy to access.
New strengthened cable with automatic tensioning cable reel is more wearable and extend service life.
